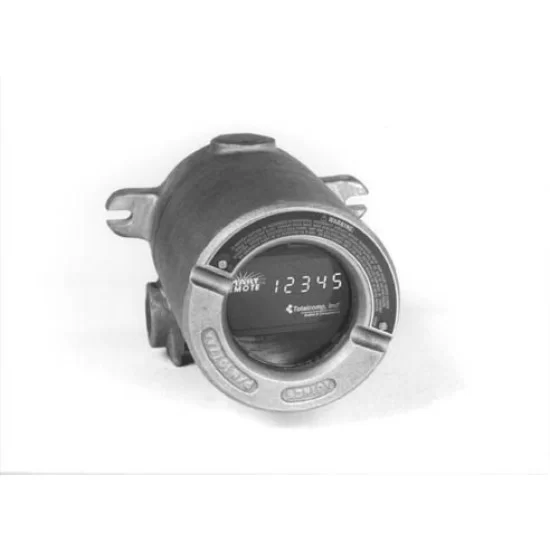

TSR-.4L-EXP Smart Remote Explosion Proof
SKU :
2631
Available :
2
$1,886.00
Ex Tax: $1,886.00
Bright digits, L.E.D. seven segments, 6 digit, max 999999.
For indoor use away from direct sunlight for best viewing.
Serial input RS232C, 20 ma serial current loop, active or passive.
1200, 2400, 4800, 9600 baud, 7 or 8 data bits, odd, even or no parity, 1 or 2 stop bits.
No setup is required.
Just connect the signal wires.
Press the LEARN button and the Smart Remote sets itself up.
Wall mounting lugs on cast explosion proof housing.
-40 deg C to +75 deg C.
115 VAC, 60 Hz.
For indoor use away from direct sunlight for best viewing.
Serial input RS232C, 20 ma serial current loop, active or passive.
1200, 2400, 4800, 9600 baud, 7 or 8 data bits, odd, even or no parity, 1 or 2 stop bits.
No setup is required.
Just connect the signal wires.
Press the LEARN button and the Smart Remote sets itself up.
Wall mounting lugs on cast explosion proof housing.
-40 deg C to +75 deg C.
115 VAC, 60 Hz.
